Windsocks
Millard Towers offers a complete line of windsock assemblies:
Aviation Windsocks used for ICAO, FAA, and Transport Canada airport and heliport applications.
Frangible Towers used to support Aviation Windsocks where there is a risk of accidental impact.
Aluminum Windsock Poles used for all applications - Aviation, Explosion Proof, and Industrial.
Explosion Proof Windsocks used for offshore and onshore helideck platforms typical in the oil and gas industry.
Industrial Windsocks used at factories, railyards, farms, arenas, and other locations where a wind direction indicator is needed.
Fabric and Industrial Windsock Swivels can be purchased in our online store. For all other items, please contact us for a custom quote.
Millard’s aviation windsocks, also known as wind cones, employ the same engineering principles that have made its towers renowned. The windsock swivel is built with high-grade materials and designed for optimal performance. Assemblies have been stringently tested and are fully compliant with ICAO, FAA, and Transport Canada structural and photometric requirements. For your convenience, fabric windsocks can be purchased online at our shop.
SPECIFICATIONS
| ICAO | Annex 14 and Doc 9261 |
| FAA | AC 150 / 5345-27 |
| Transport Canada | TP312 and TP325 |
| Swivel, Frame | Marine-grade aluminum |
| Hardware | Grade 5 EcoGuard steel |
| Treatment | Powder coated orange, other colours available |
| Bearings | Stainless Steel |
| Diameter | 30cm, 45cm, 60cm, 90cm |
| Fabric Colour | Solid orange, red-white bands |
| Power Supply | Unlit, 100-240VAC, 12VDC (solar), 2.8-6.6A (airfield circuit) |
| Lamp Design | LED |
| Mean Hourly Wind Load | 750Pa (120km/h) |
| 3-Second Gust Wind Load | 1,500Pa (170km/h) |
| Radial Ice | 12.5mm |
| Movement | ±5° true wind direction in 3-knot wind |
| Lamp Life | >50,000 hours |
| Burn-in Test | >4 hours |
ACCESSORIES
Power Supply Enclosure Mount
Obstruction Light Mount
Single Obstruction Light
Windsock Fabric
Solar Power Supply
Photocell
Explosion Proof Windsocks are designed to give helicopter pilots a highly visible indication of wind speed and direction during landing and take-off in all weather and light conditions. For use on all offshore and onshore helideck platforms, the corrosion resistant illuminated windsock is rated for Zone 1 and 2 areas with gas explosion hazard and complies with Transport Canada TP325, ICAO Annex 14, and UK CAA CAP437 specifications. Made from high-grade materials and utilizing cutting-edge components, the assembly requires minimum maintenance - only a periodic visual inspection is required.
SPECIFICATIONS
| ATEX | Explosion-proof zones I and II |
| ICAO | Doc 9261 |
| Transport Canada | TP325 |
| UK CAA | CAP437 |
| Swivel, Frame | Stainless steel |
| Diameter | 45cm |
| Fabric Length | 120cm, 180cm, 240cm |
| Fabric Colour | Solid orange, red-white bands |
| Power Supply | 110-254VAC, 10-32VDC |
| Lamp Design | LED |
| Power | 8.5W (VAC), 7W (VDC) |
| Obstruction Light | 10W (32cd) |
| Operating Temperature | -40°C to +60°C |
| Movement | ±5° true wind direction in 3-knot wind |
| Lamp Life | >50,000 hours |
| Burn-in Test | >4 hours |
Fabricated from stainless steel, industrial windsock offer a simple, yet durable design to be used in a variety of applications - manufacturing facilities, chemical plants, oil & gas, agriculture, railyards. Designs are kept in stock to ensure quick delivery and can be purchased online in our store.
SPECIFICATIONS
| Swivel, Frame | Stainless steel |
| Bearings | Lubrication-free nylon bushings |
| Diameter | 33cm, 45cm, 60cm |
| Fabric Length | 120cm, 150cm, 180cm, 240cm |
| Fabric Colour | Solid orange, red-white bands |
| Mount | ¾" NPT (male) |

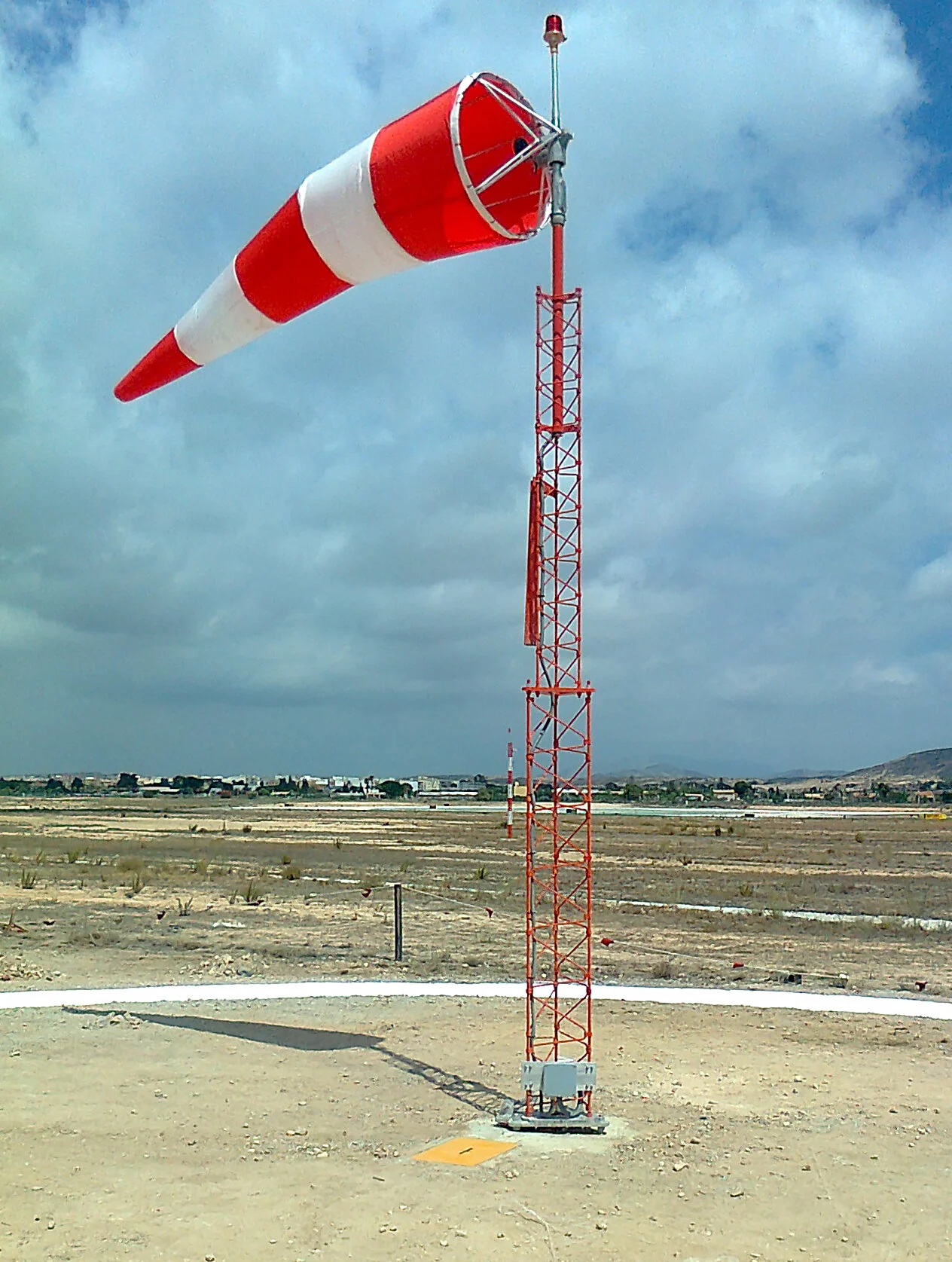

Frangible windsock towers are manufactured to ICAO and FAA frangibility specifications and made from high-grade Aluminum alloy. The unique lattice structure offers rigidity in high winds, but is yielding if accidentally impacted by an aircraft. The tower comes equipped with either a tilting base or an elevated hinge. Both provide easy servicing for windsock maintenance and replacement.
SPECIFICATIONS
| Frangibility | ICAO Doc 9157 Part 6 and FAA AC 150 / 5345-45 |
| Loading | CSA S37 |
| Crating | ISPM15 certified |
| Sections, Accessories | Marine-grade aluminum |
| Hardware | Grade 5 EcoGuard steel |
| Treatment | Powder coated orange, others available |
| Height Range | 2.25m, 4.50m |
| Height Increments | 0.75m |
| Maximum Section Length | 2.25m |
| Maximum Section Weight | 10kg |
| Mount | 2" NPT male (60mm OD), others available |
| Mean Hourly Wind Load | 750Pa (120km/h) |
| 3-Second Gust Wind Load | 1,500Pa (170km/h) |
| Radial Ice | 12.5mm |
| Lifespan | 25 to 30 years |
| Recyclable | 100% |
| Fixed Base | Available for all heights |
| Tilt Base | 2.25m, available for 4.50m |
| Tilt-Over | 4.50m |
ACCESSORIES
Foundation Kits
Power Supply Enclosure Mount
Tilt Stand
Wormgear Winch
Electric Winch
When frangibility is not required, Millard’s robust Aluminum poles can be used to support windsock assemblies. The design is not subject to warping or bending caused by long-term fatigue as is the case with other windsock supports. For servicing, all designs come with a tilt base that allow it to be raised and lowered by hand. An optional center hinge operates using a winch and allows the pole to be raised and lowered by a single technician without the risk of falling.
SPECIFICATIONS
| Loading | CSA S37 |
| Crating | ISPM15 certified |
| Sections, Accessories | Marine-grade aluminum |
| Hardware | Grade 5 EcoGuard steel |
| Treatment | Powder coated orange, others available |
| Height Range | 2.25m, 4.50m |
| Maximum Section Length | 3.00m |
| Maximum Section Weight | 8kg |
| Mount | 2" NPT male (60mm OD), others available |
| Mean Hourly Wind Load | 750Pa (120km/h) |
| 3-Second Gust Wind Load | 1,500Pa (170km/h) |
| Radial Ice | 12.5mm |
| Lifespan | 25 to 30 years |
| Recyclable | 100% |
| Tilt Base | Standard on all heights |
| Tilt-Over | 4.50m |
ACCESSORIES
Foundation Kits
Power Supply Enclosure Mount
Tilt Stand
Two-way Locking Winch
Frangible Fuse Bolts
